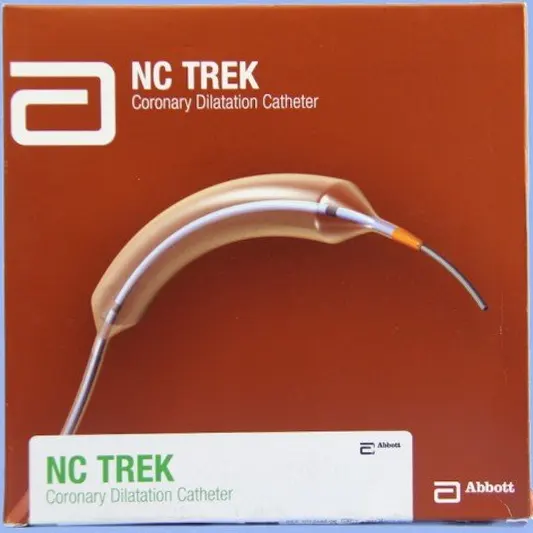

Abbott Mini Trek Balloon / Abbott NC Trek Catheter is commonly used in procedures such as angioplasty and stenting to treat coronary artery disease and peripheral artery disease. It helps to open narrowed or blocked blood vessels by inflating a balloon at the tip of the catheter, which compresses plaque and widens the vessel. The "Trek" in the name might refer to the catheter's ability to navigate through tortuous or difficult-to-reach vessels. These catheters are designed with features to enhance their trackability and deliverability, allowing physicians to perform procedures more effectively in complex anatomies. Abbott is a major medical device company known for its cardiovascular products, so it's possible that the "NC Trek" catheter is a product within their portfolio. However, specific details about the device, including its design, indications for use, and availability, would depend on the product specifications provided by Abbott and may vary based on regulatory approvals in different regions.
Satyasales a leading seller of Abbott Mini trek balloon, Mini trek balloon, Noida, Faridabad and NCR provides authentic Medtronic products North India. We deals Abott products since 2011 and also dealing in various cardiac surgical products used in implantation of various Cardiology / Cardiac Surgery The company was established in 2011.
Satya Sales other Hot Selling Cardiac Surgery Products

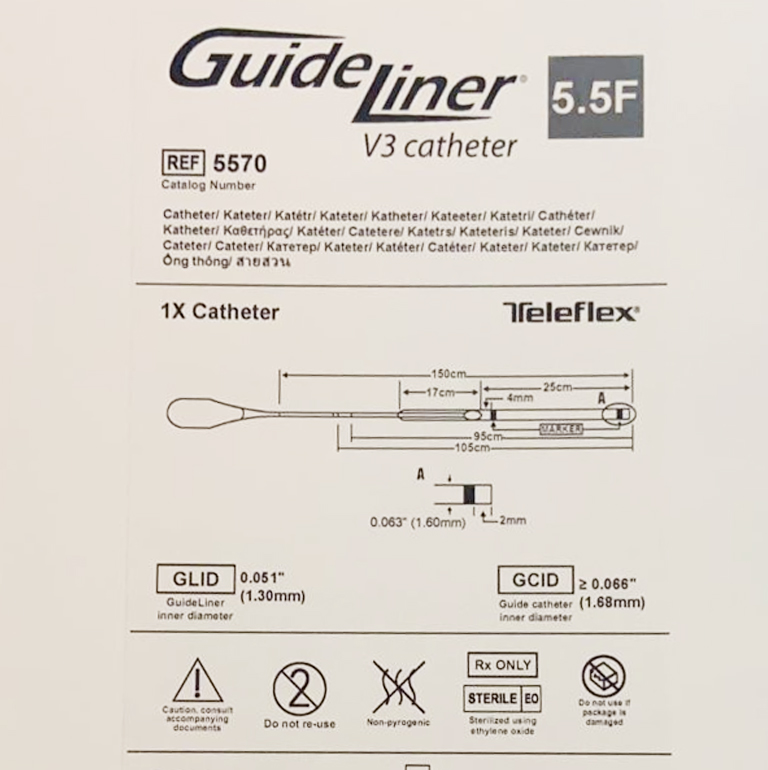

Covidien Ligasure Device Ethicon Harmonic Hp054 Teleflex Guide Liners 5.5FR, 6FR
SATYA SALES having good stock of Abbott Mini trek balloon, MINI TREK™ Coronary Dilatation Catheter’s ultra low profile design enables lesion access.
Abbott Mini trek balloon, Small chassis designed distinctively for MINI TREK™ Coronary Dilatation Catheter.
Abbott Mini trek balloon Available in sizes as small as 1.20 mm.

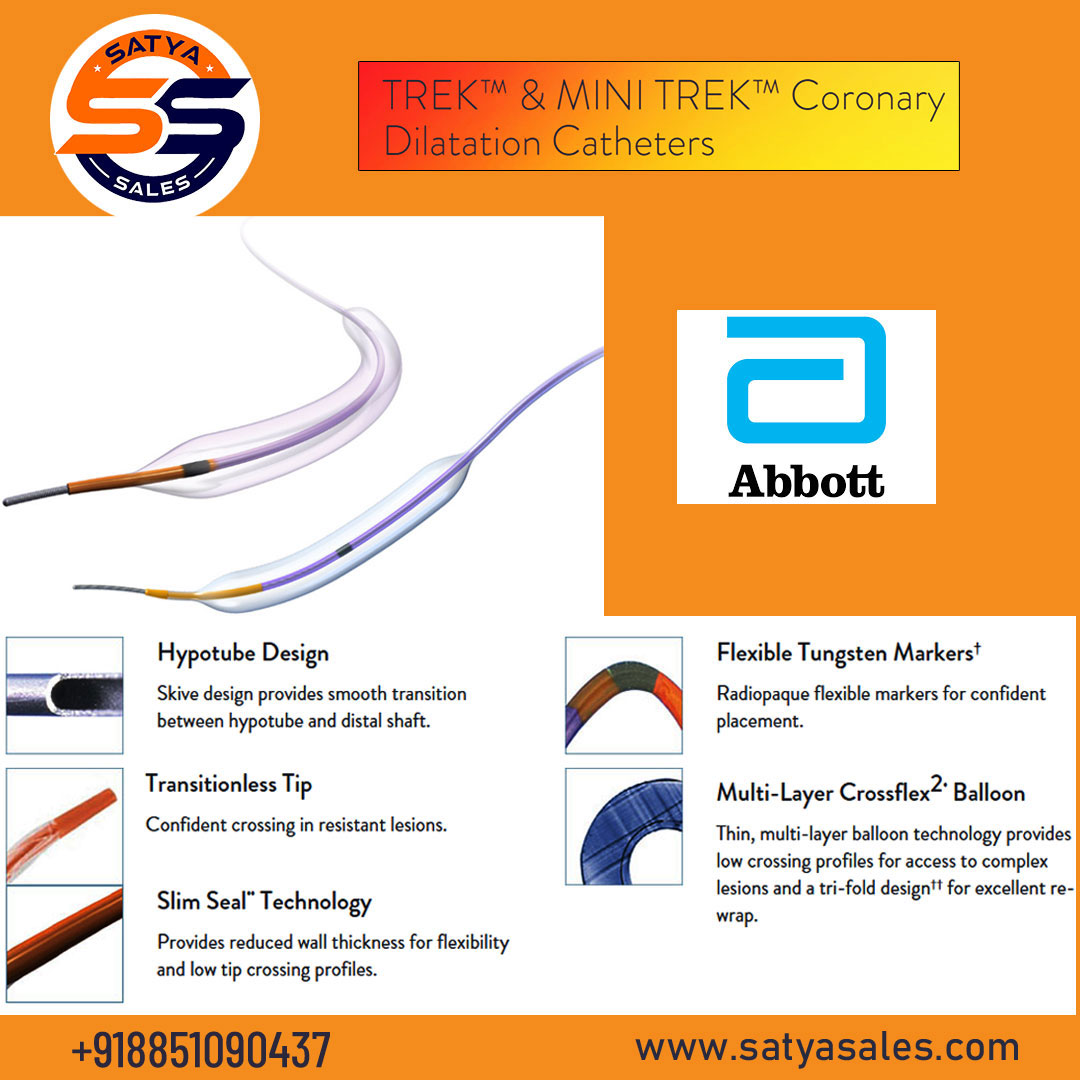

Abbott Mini trek balloon, Mini trek balloonCHARACTERISTICS
Hypotube Design.
Flexible Tungsten Markers.
Transitionless Tip .
Multi-Layer Crossflex2* Balloon .
Slim Seal** Technology .
Applies to MINI TREK™ RX and MINI TREK™ II OTW 1.50 mm – 2.00 mm sizes only: The TREK™ RX & OTW Coronary Dilatation Catheters are indicated for: Balloon dilatation of the stenotic portion of a coronary artery or bypass graft stenosis, for the purpose of improving myocardial perfusion Balloon dilatation of a coronary artery occlusion, for the purpose of restoring coronary flow in patients with ST-segment elevation myocardial infarction Balloon dilatation of a stent after implantation (balloon model 2.0 mm only) Balloon dilatation of de novo chronic total coronary occlusions (CTO)
This device is intended for one time use only. DO NOT resterilize and / or reuse it, as this can compromise device performance and increase the risk of cross contamination due to inappropriate reprocessing.
Percutaneous transluminal coronary angioplasty (PTCA) should only be performed at hospitals where emergency coronary artery bypass graft surgery can be quickly performed in the event of a potentially injurious or lifethreatening complication.
PTCA in patients who are not acceptable candidates for coronary artery bypass graft surgery requires careful consideration, including possible hemodynamic support during PTCA, as treatment of this patient population carries special risk.
Use only the recommended balloon inflation medium. Never use air or any gaseous medium to inflate the balloon.
Balloon pressure should not exceed the rated burst pressure (RBP). The RBP is based on results of in vitro testing. At least 99.9% of the balloons (with a 95% confidence) will not burst at or below their RBP. Use of a pressuremonitoring device is recommended to prevent over pressurization.
To reduce the potential for vessel damage, the inflated diameter of the balloon should approximate the diameter of the vessel just proximal and distal to the stenosis.
When the catheter is exposed to the vascular system, it should be manipulated while under high quality fluoroscopic observation.
Do not advance or retract the catheter unless the balloon is fully deflated under vacuum. If resistance is met during manipulation, determine the cause of the resistance before proceeding.
Do not use, or attempt to straighten, a catheter if the shaft has become bent or kinked; this may result in the shaft breaking. Instead, prepare a new catheter.
Do not torque the catheter more than one (1) full turn.
Treatment of moderately or heavily calcified lesions is considered to be moderate risk, with an expected success rate of 60 – 85% and increases the risk of acute closure, vessel trauma, balloon burst, balloon entrapment, and associated complications. If resistance is felt, determine the cause before proceeding. Continuing to advance or retract the catheter while under resistance may result in damage to the vessels and / or damage / separation of the catheter.
In the event of catheter damage / separation, recovery of any portion should be performed based on physician determination of individual patient condition and appropriate retrieval protocol.
TREK™ & MINI TREK™ Coronary Dilatation Catheters | |
---|---|
Nominal Pressure (NP) | 8 atm |
Rated Burst Pressure (RBP) | 14 atm |
Tip Entry Profile | 0.017 in (3.00 mm Ø) |
Tip Crossing Profile | 0.021 in average (3.00 mm Ø) 0.023 in maximum |
Folded Balloon Crossing Profile | 0.032 in average (3.00 mm Ø) 0.036 in maximum (3.00 mm Ø) |
Refolded Balloon Crossing Profile | 0.056 in maximum (3.00 mm Ø) |
RX Notch Diameter (For RX Platform) | 2.5 French average (3.00 mm Ø) 2.7 French maximum (all Ø) |
Tip Length | <3 mm |
Balloon Material | Pebax†, semi-compliant |
Marker Material | Flexible Tungsten/Pebax‡ |
Catheter Length | 145 cm |
Balloon Coating | Hydrophilic |
Minimum Guide Catheter | 5 French (1.20 mm – 4.00 mmØ) 6 French (4.50 mm & 5.00 mmØ) |
Maximum Guide Wire Compatibility | 0.014 in |
Latex Free | Yes |
Balloon Diameter (mm) | Balloon Length (mm) | |||||||
---|---|---|---|---|---|---|---|---|
6 | 8 | 12 | 15 | 20 | 25 | 30 | ||
MINI TREK™ RX (CTO INDICATED) | 1.20 | 1012268-06U | 1012268-08U | 1012268-12U | 1012268-15U | 1012268-20U | - | - |
1.50 | 1012269-06 | 1012269-08 | 1012269-12 | 1012269-15 | 1012269-20 | - | - | |
2.00 | 1012270-06 | 1012270-08 | 1012270-12 | 1012270-15 | 1012270-20 | 1012270-25 | 1012270-30 | |
TREK RX™ | 2.25 | 1012271-06 | 1012271-08 | 1012271-12 | 1012271-15 | 1012271-20 | 1012271-25 | 1012271-30 |
2.50 | 1012272-06 | 1012272-08 | 1012272-12 | 1012272-15 | 1012272-20 | 1012272-25 | 1012272-30 | |
2.75 | 1012273-06 | 1012273-08 | 1012273-12 | 1012273-15 | 1012273-20 | 1012273-25 | 1012273-30 | |
3.00 | 1012274-06 | 1012274-08 | 1012274-12 | 1012274-15 | 1012274-20 | 1012274-25 | 1012274-30 | |
3.25 | 1012275-06 | 1012275-08 | 1012275-12 | 1012275-15 | 1012275-20 | 1012275-25 | 1012275-30 | |
3.50 | 1012276-06 | 1012276-08 | 1012276-12 | 1012276-15 | 1012276-20 | 1012276-25 | 1012276-30 | |
3.75 | 1012277-06 | 1012277-08 | 1012277-12 | 1012277-15 | 1012277-20 | 1012277-25 | 1012277-30 | |
4.00 | 1012278-06 | 1012278-08 | 1012278-12 | 1012278-15 | 1012278-20 | 1012278-25 | 1012278-30 | |
4.50 | - | - | 1012279-12 | 1012279-15 | - | - | - | |
5.00 | - | - | 1012280-12 | 1012280-15 | - | - | - |
Balloon Diameter (mm) | Balloon Length (mm) | |||||||
---|---|---|---|---|---|---|---|---|
6 | 8 | 12 | 15 | 20 | 25 | 30 | ||
MINI TREK™ II OTW (CTO INDICATED) | 1.20 | 1012401-06Z | 1012401-08Z | 1012401-12Z | 1012401-15Z | 1012401-20Z | - | - |
1.50 | 1012402-06A | 1012402-08A | 1012402-12A | 1012402-15A | 1012402-20A | - | - | |
2.00 | 1012403-06A | 1012403-08A | 1012403-12A | 1012403-15A | 1012403-20A | - | - | |
TREK OTW™ | 2.25 | 1012404-06 | 1012404-08 | 1012404-12 | 1012404-15 | 1012404-20 | 1012404-25 | 1012402-30 |
2.50 | 1012405-06 | 1012405-08 | 1012405-12 | 1012405-15 | 1012405-20 | 1012405-25 | 1012405-30 | |
2.75 | 1012406-06 | 1012406-08 | 1012406-12 | 1012406-15 | 1012406-20 | 1012406-25 | 1012406-30 | |
3.00 | 1012407-06 | 1012407-08 | 1012407-12 | 1012407-15 | 1012407-20 | 1012407-25 | 1012407-30 | |
3.25 | 1012408-06 | 1012408-08 | 1012408-12 | 1012408-15 | 1012408-20 | 1012408-25 | 1012408-30 | |
3.50 | 1012409-06 | 1012409-08 | 1012409-12 | 1012409-15 | 1012409-20 | 1012409-25 | 1012409-30 | |
3.75 | 1012410-06 | 1012410-08 | 1012410-12 | 1012410-15 | 1012410-20 | 1012410-25 | 1012410-30 | |
4.00 | 1012411-06 | 1012411-08 | 1012411-12 | 1012411-15 | 1012411-20 | 1012411-25 | 1012411-30 | |
4.50 | - | - | 1012412-12 | 1012412-15 | - | - | - | |
5.00 | - | - | 1012413-12 | 1012413-15 | - | - | - |
Inflation Pressure (atm) | Balloon Diameter (mm) | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1.20 | 1.50 | 2.00 | 2.25 | 2.50 | 2.75 | 3.00 | 3.25 | 3.50 | 3.75 | 4.00 | 4.50 | 5.00 | |
MINI TREK™ | TREK™ | ||||||||||||
2 | 1.10 | 1.34 | 1.69 | 1.87 | 2.15 | 2.16 | 2.49 | 2.91 | 2.93 | 3.06 | 3.24 | 3.69 | 4.10 |
3 | 1.12 | 1.36 | 1.80 | 1.95 | 2.20 | 2.35 | 2.56 | 2.98 | 3.04 | 3.22 | 3.46 | 3.91 | 4.28 |
4 | 1.13 | 1.38 | 1.85 | 2.00 | 2.27 | 2.41 | 2.66 | 3.05 | 3.11 | 3.31 | 3.56 | 4.04 | 4.43 |
5 | 1.14 | 1.40 | 1.90 | 2.06 | 2.34 | 2.49 | 2.73 | 3.12 | 3.20 | 3.41 | 3.67 | 4.17 | 4.59 |
6 | 1.17 | 1.43 | 1.94 | 2.12 | 2.40 | 2.56 | 2.81 | 3.19 | 3.28 | 3.50 | 3.78 | 4.29 | 4.73 |
7 | 1.18 | 1.45 | 1.98 | 2.17 | 2.45 | 2.63 | 2.87 | 3.25 | 3.38 | 3.59 | 3.89 | 4.40 | 4.86 |
8 NP | 1.20 | 1.47 | 2.01 | 2.21 | 2.51 | 2.70 | 2.93 | 3.31 | 3.45 | 3.67 | 3.99 | 4.49 | 4.98 |
9 | 1.21 | 1.49 | 2.03 | 2.25 | 2.55 | 2.75 | 2.97 | 3.36 | 3.51 | 3.74 | 4.06 | 4.56 | 5.05 |
10 | 1.23 | 1.51 | 2.07 | 2.28 | 2.58 | 2.80 | 3.01 | 3.39 | 3.56 | 3.79 | 4.11 | 4.62 | 5.13 |
11 | 1.24 | 1.52 | 2.09 | 2.31 | 2.60 | 2.83 | 3.04 | 3.42 | 3.60 | 3.84 | 4.18 | 4.68 | 5.20 |
12 | 1.25 | 1.54 | 2.12 | 2.33 | 2.62 | 2.86 | 3.07 | 3.45 | 3.64 | 3.87 | 4.23 | 4.73 | 5.25 |
13 | 1.26 | 1.55 | 2.14 | 2.35 | 2.64 | 2.88 | 3.09 | 3.48 | 3.67 | 3.91 | 4.28 | 4.80 | 5.31 |
14 RBP | 1.27 | 1.56 | 2.17 | 2.37 | 2.67 | 2.91 | 3.11 | 3.50 | 3.70 | 3.94 | 4.32 | 4.86 | 5.36 |
15 | 1.28 | 1.57 | 2.19 | 2.39 | 2.69 | 2.92 | 3.14 | 3.53 | 3.73 | 3.99 | 4.38 | 4.92 | 5.41 |
16 | 1.29 | 1.59 | 2.21 | 2.41 | 2.71 | 2.96 | 3.16 | 3.56 | 3.75 | 4.02 | 4.44 | 4.98 | 5.50 |
17 | 1.30 | 1.60 | 2.24 | 2.43 | 2.73 | 2.99 | 3.18 | 3.58 | 3.78 | 4.05 | 4.49 | 5.04 | 5.56 |
